Setting up a network storage box or a multi-drive enclosure, you are asked to choose a RAID level before you can go any further, and the options read like a lottery of numbers. Each one strikes a different bargain between usable space, speed and how many drive failures you can survive. Getting the choice right means understanding what each layout actually guards against, and just as importantly what it does nothing to protect. This guide explains the common levels in plain terms, the danger that lurks during a rebuild, why none of it replaces a backup, and how to pick sensibly at home.
What RAID actually does
RAID combines several physical drives so the computer sees them as one. It leans on three basic techniques. Striping splits data across drives so they work in parallel for more speed. Mirroring writes the same data to two drives at once so a copy always exists. Parity stores extra mathematical information that can rebuild missing data if one drive drops out, giving protection without doubling the disks.
Every RAID level is a recipe built from those ingredients. The differences come down to how much capacity you keep, how much speed you gain, and how many drives can fail before the whole set is lost. No single arrangement wins on all three at once, which is why several levels exist side by side.
The common levels at a glance
Four layouts cover almost every home and small-office need. RAID 0 stripes for pure speed and capacity with no safety margin. RAID 1 mirrors two drives for straightforward redundancy. RAID 5 spreads parity across three or more drives to balance space and protection. RAID 10 pairs mirroring and striping for both speed and resilience at the cost of half your capacity.
| Level | How it works | Minimum drives | Usable capacity | Survives |
|---|---|---|---|---|
| RAID 0 | Striping only | 2 | All of it | No drive failure |
| RAID 1 | Mirroring | 2 | Half | One drive failure |
| RAID 5 | Striping with parity | 3 | All but one drive | One drive failure |
| RAID 10 | Mirrored pairs, striped | 4 | Half | One per mirrored pair |
What each level protects against
The protection RAID offers is narrow and specific. It guards against the sudden death of a physical drive, so that a mechanical failure or a dead controller board does not take your data with it. RAID 1, 5 and 10 all keep the array running when a single disk fails, letting you replace it and carry on without downtime.
RAID 0 sits apart because it protects against nothing. Losing any one of its drives loses the entire set, since every file is scattered across all of them with no spare copy. That risk is why an array is usually reserved for data, not for the system disk, which many people prefer to run from a separate drive, an approach the guide on running your operating system from an external SSD describes. Note also that RAID does nothing about accidental deletion, corruption or theft.
Rebuilds and the risk during them
When a drive fails in a redundant array, you fit a replacement and the system rebuilds the missing data onto it from the survivors. This is the tense part. A rebuild forces every remaining drive to read from end to end, often for many hours or even days on a large array, and that sustained strain is exactly when a second, already tired drive is most likely to give up.
The odds worsen because drives bought together tend to age together and can wear at a similar pace, a shared-fate problem the guide on how drives wear out over their working life explains. On a big RAID 5, a single unreadable sector encountered during the rebuild can halt the whole recovery, which is why larger arrays often favour layouts that tolerate two failures.
Why RAID is not a backup
The most costly misunderstanding is treating an array as a backup. RAID keeps a service running through a hardware failure, but it faithfully copies almost everything else. Delete a file by mistake and it vanishes from every mirrored drive instantly. A virus, a botched update or silent corruption spreads across the array just as fast, because to the RAID system those writes look entirely legitimate.
A backup is a separate copy, ideally in another location, that is not changed in step with the original. RAID and backups solve different problems, and you want both. The array keeps you working when a disk dies, while the backup lets you recover from mistakes, malware and disasters that reach the whole machine.
Choosing a level for home
For a two-drive home setup, RAID 1 is the calm default, simple to grasp and quick to rebuild. With four or more drives and a wish for more usable space, RAID 5 makes sense for general storage, though its rebuild risk grows with drive size. RAID 10 suits people who want both speed and safety and can accept losing half their capacity. RAID 0 is best kept for scratch space you can happily lose.

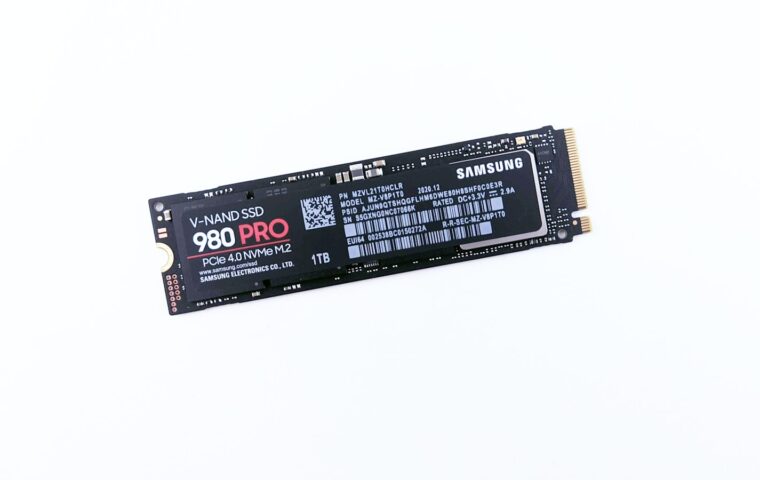

If the array will hold your media library and back up several machines, size it with room to spare and remember that flash-based arrays have their own quirks, such as keeping free space for the drive to manage itself, a point the guide on how spare capacity keeps an SSD healthy covers. A home server built around any of these levels still needs that separate backup to be genuinely safe.
Where this leaves you
RAID is a tool for availability, keeping data reachable through the failure of a disk, not a vault that shields it from every mishap. Once you see it that way, the choice of level becomes a plain trade among space, speed and how many failures you want to ride out, matched to how many drives you have and how much downtime you can tolerate.
Decide what you are really protecting against, pick the layout that answers it, and pair the array with a backup that lives somewhere else. For anyone assembling a first multi-drive box, the practical walk-through the guide on setting up a home network storage box offers turns these abstract levels into concrete steps.
Frequently asked questions
Is RAID a backup?
No. RAID keeps an array working through the failure of a drive, but it copies deletions, corruption and malware to every disk at once, so it cannot recover from those. A backup is a separate, independent copy, ideally kept in another location, that is not altered in lockstep with the original. Use RAID for uptime and a real backup for recovery, and keep both.
Which RAID level should I use?
For two drives at home, RAID 1 mirroring is the straightforward choice. With four or more drives and a need for more space, RAID 5 balances capacity and protection, while RAID 10 gives speed and resilience if you can spare half the capacity. Reserve RAID 0 for temporary data you can afford to lose, since it protects against nothing.
What happens when a RAID drive fails?
In a redundant array the set keeps running in a degraded state on its remaining drives, so your data stays reachable. You replace the failed disk and the system rebuilds its contents from the others, which can take hours or days. During that rebuild the surviving drives are under heavy load, so a good current backup matters most at exactly that moment.
